Product Features:
*Rotating dimming:10%-100%
*No voltage drop, 100% full power
*Half glue, dustproof, moisture-proof, insect-proof
*High reliability single channel constant voltage mode output
*Aluminum alloy shell, natural air cooling and heat dissipation
*Over voltage, Over temperature, Short circuit protection
*3 Years warranty
* CE ROHS certification
Application:
LED strips light, guardrail tubes, modules, floodlights, Wall washing lamps, buried lamps, street lamps, display screens, Various LED lighting projects etc.
| SPECIFICATION | |||

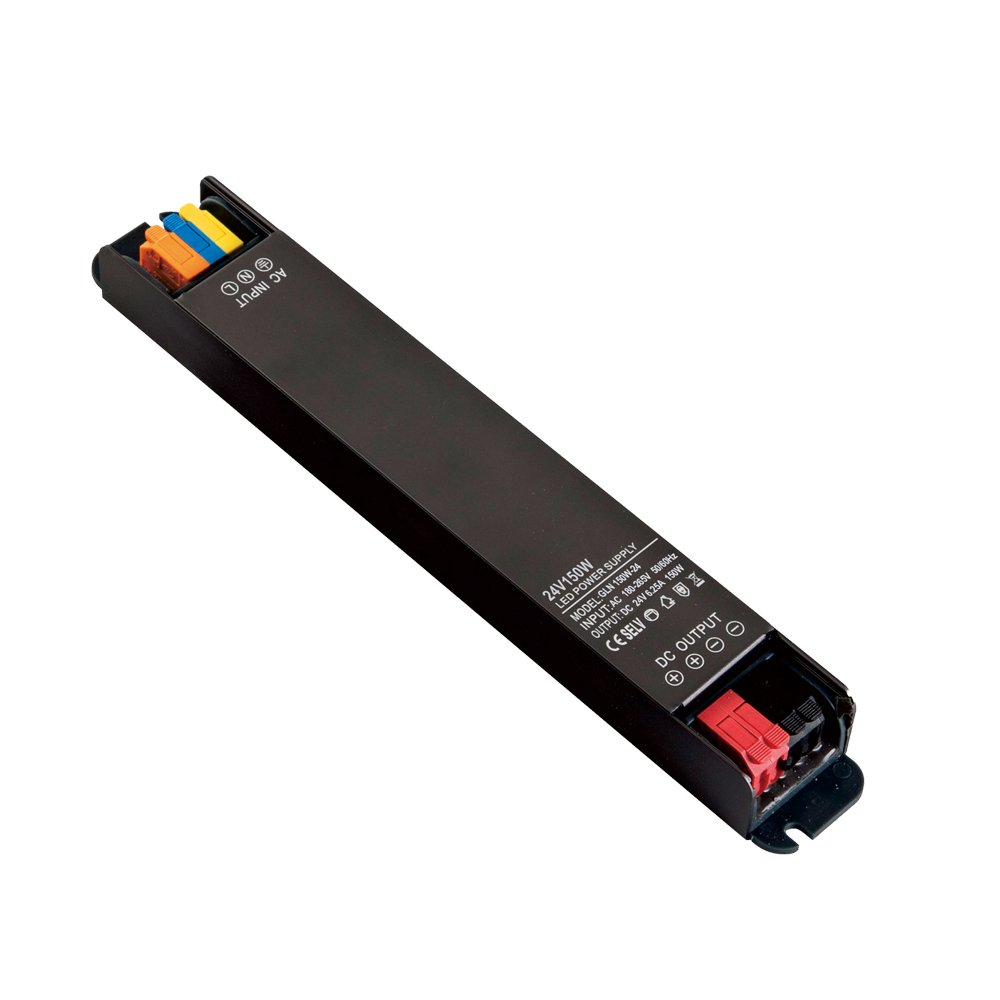

| MODEL | GLN-150W-12S | GLN-150W-24S | |
| OUTPUT | Output voltage | 12V DC | 24V DC |
| Output voltage range | 12VDC±0.5VDC | 24VDC±0.5VDC | |
| Output сurrent | 5A | 2.5A | |
| Output power | 150W | ||
| Ripple & Noise | ≤120mV | ≤240mV | |
| Linear Regulation | ±1% | ||
| Load Regulation | ±1% | ||
| INPUT | Input voltage | 110-265V | |
| Efficiency (typ.) | 85% | 86% | |
| Frequency | 50/60Hz | ||
| Power Factor | 0.6 | ||
| Inrush current(typ.) | Cold start 55A at 230Vac | ||
| Leakage сurrent | Max. 0.5mA | ||
| PROTECTION | Over current Protection | Voltage and current decrease, recover after fault condition removed. | |
| Over load protection | Reduce current hiccup protection, recover after fault condition is removed | ||
| Short circuit protection | Protection type:recover automatically after fault conditi is removed. | ||
| ENVIRONMENT | Working temperature, humidity | -20~+50℃ 20%~90%RH | |
| Storage temp., humidity | -40~+85℃ 20%~90%RH | ||
| SAFETY REGULATIONS | Safety Standards | IEC/EN61347;IEC/EN60950;IP20 | |
| With stand Voltag | I/P-O/P:3750Vac | ||
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| OHTERS | Dimension LxWxH(mm) | 262*27*23mm | |
| Packages | 155PCS/CTN | ||
| MTBF | <25℃: 30000Hrs | ||
