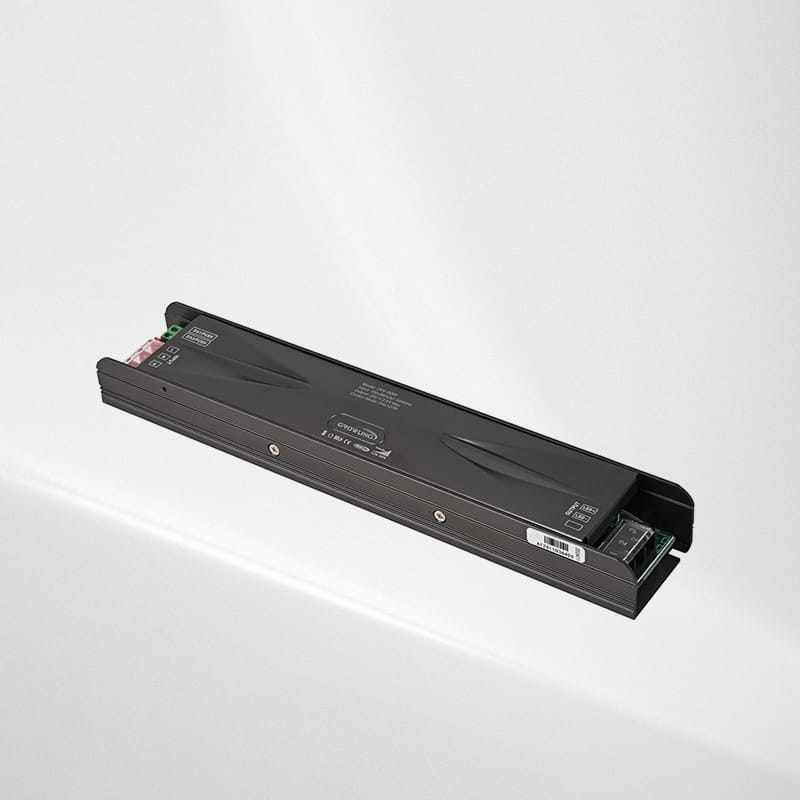

Dali DT6 Dimmable IP20 60W LED Driver

Dali DT6 Dimmable IP20 60W LED Driver DC 12V/24V Power Supply

Product Features:
*Dali-2 DT6 dimming
*Dimming range 1%-100%, LED start 0.1%
*High reliability constant voltage mode output
*Aluminum alloy shell, natural air cooling and heat dissipation
*Over voltage, Over temperature, Short circuit protection
*3 Years warranty
* CE ROHS certification

Application:
LED strips light, guardrail tubes, modules, floodlights
Wall washing lamps, buried lamps, street lamps,
display screens, Various LED lighting projects etc.

Dali DT6 Dimmable IP20 60W LED Driver DC 12V/24V Power Supply

SPECIFICATION
MODEL		GLKD-60W-12D	GLKD-60W-24D
OUTPUT	Output voltage	12V DC	24V DC
	Output voltage range	12VDC±0.5VDC	24VDC±0.5VDC
	Output сurrent	5A	2.5A
	Output power	60W
	Ripple & Noise	≤120mV	≤240mV
	Linear Regulation	±5%
	Load Regulation	±5%
INPUT	Input voltage	180-265V
	Efficiency (typ.)	85%	86%
	Frequency	50/60Hz
	Power Factor	0.6
	Inrush current(typ.)	Cold start 45A at 230Vac
	Leakage сurrent	Max. 0.5mA
	Dimming Interface	DALI DT6
	Dimming Range	1%-100%
PROTECTION	Over current Protection	Voltage and current decrease, recover after fault condition removed.
	Over load protection	Reduce current hiccup protection, recover after fault condition is removed
	Short circuit protection	Protection type:recover automatically after fault conditi is removed.
ENVIRONMENT	Working temperature, humidity	-30~+50℃ 20%~90%RH
	Storage temp., humidity	-40~+80℃ 20%~90%RH
SAFETY REGULATIONS	Safety Standards	IEC/EN61347;IEC/EN60950;IP20
	With stand Voltag	I/P-O/P:3000Vac
	Isolation resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
OHTERS	Dimension LxWxH(mm)	1704429.5mm
	Packages	48PCS/CTN
	MTBF	<25℃: 50000Hrs
