Product Features:
*Automatic Recognize Output 12V&24V
*Slide Switch 12V&24V for colorful strip light
*No voltage drop, 100% full power
*Internal resonant circuit(LLC)
*High reliability single channel constant voltage mode output
*Aluminum alloy shell, natural air cooling and heat dissipation
*Over load, Over temperature, Short circuit protection
*CE, ROHS, UKCA, CB, ERP, SAA, REACH Certification
*3 Years warranty
Application:
LED strips light, guardrail tubes, modules, floodlights, Wall washing lamps, buried lamps, street lamps, display screens, Various LED lighting projects etc.

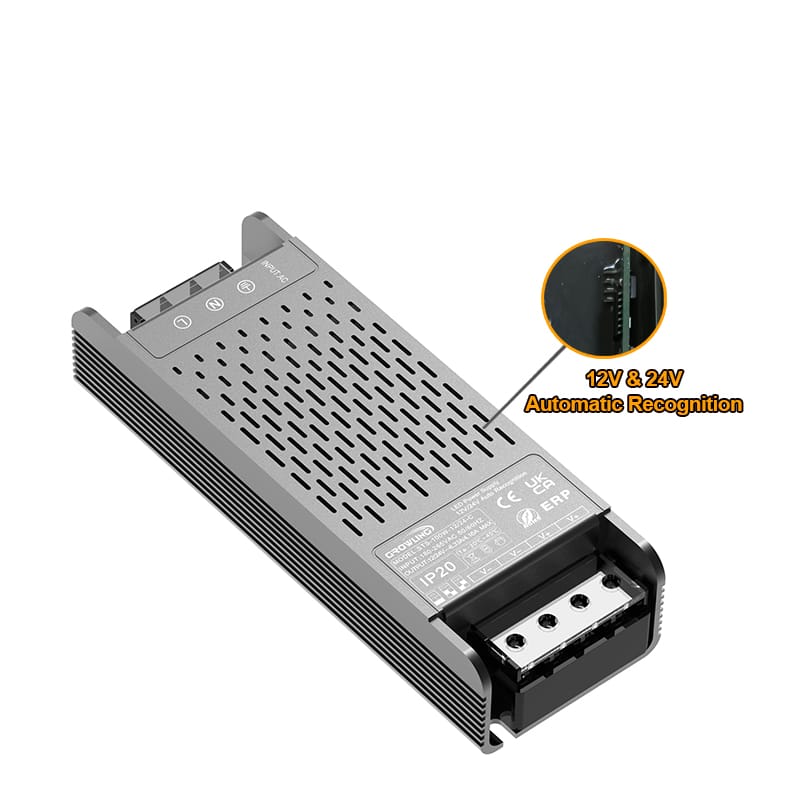

Automatic Recognition DC12V&24V IP20 100W LED Power Supply
| SPECIFICATION | |||
| MODEL | GLK-100W-12/24A | ||
| OUTPUT | Output voltage | DC12V&24V Automatic Recognition | |
| Output voltage range | 12VDC/24VDC±0.5VDC | ||
| Output сurrent | 8.3A/4.1A | ||
| Output power | 100W | ||
| Ripple & Noise | ≤150mV/≤200mV | ||
| Linear Regulation | ±1% | ||
| Load Regulation | ±1% | ||
| INPUT | Input voltage | 180-265V | |
| Efficiency (typ.) | 88% | ||
| Frequency | 50/60Hz | ||
| Power Factor | 0.6 | ||
| Inrush current(typ.) | Cold start 50A at 230Vac | ||
| Leakage сurrent | Max. 0.5mA | ||
| PROTECTION | Over load protection | Shut down the output when current load ≥105%~140%, recover after fault condition is removed. | |
| Over temeraturer protection | Output power gradually decreases, recover after the temperature drops to normal. | ||
| Short circuit protection | Hiccup protection, recover after fault condition is removed. | ||
| ENVIRONMENT | Working temperature, humidity | -30~+50℃ 20%~95%RH | |
| Storage temp., humidity | -40~+80℃ 10%~90%RH | ||
| SAFETY REGULATIONS |
Withstand voltage | I/P-O/P: 1500Vac | |
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| Safety Standards | IEC/EN61347;IEC/EN60950;IP20 | ||
| OHTERS | Dimension LxWxH(mm) | 158*50*29mm | |
| Packages | 40PCS/CTN | ||
| MTBF | 30000Hrs @ 25℃ | ||
